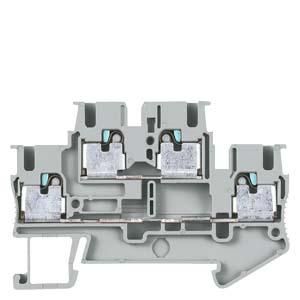

Siemens 8WH6020-0AF00 double-deck terminal 2.5qmm grey

In stock
SKU: 362993
€2.56
Into a basketIn the basketGo

Overview

IPO terminals, double-deck terminals Terminal block connection technology for various industrial applications and modern building installations from Siemens. Regardless of whether you choose screw, tension spring, push-in or quick connection: All connection technologies can be freely combined with one another. The labeling and test accessories are standardized and can be used across the board. With the terminal blocks from SIEMENS, many applications in industrial, commercial and residential construction can be realized. This means you have the right connection technology for every connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and lines. 3. Realization of a wide range of applications. 4. Convenient and simple assembly and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.14 to 4 mm²
Connectable conductor cross-section, stranded: 0.14 to 1.5 mm²
Rated voltage: 500 V
Number of floors: 2
Number of Terminal points per level: 4
Rated current In: 22 A
Operating temperature: -105 to -60 °C
Connectable conductor cross-section, single-wire: 0.14 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule: 0.14 to 2.5 mm²
Design of electrical connection 2: other
Flammability class of the insulating material according to UL 94: V0
End plate required: yes
Levels bridged internally: no
Material of the insulating body: other
Explosion-tested version 'Ex e': yes

Characteristics

HAB8WH6020-0AF00 2.5qmm grey
Minimal order50 pcs
ManufacturerSIEMENS
HAN8WH6020-0AF00
GTIN4001869416168
Connectable conductor cross-section solid0.14 to 4 mm²
Connectable conductor cross-section stranded0.14 to 1.5 mm²
Rated voltage500V
Rated current In22A
Operating temperatur-105 to -60 °C
Flammability class of the insulating material according to UL 94V0
