Siemens 6GF3440-8BC4 cable for SIMATIC VS100 lights

In stock

SKU: 355714

Price on request

€89.87

€0

Overview

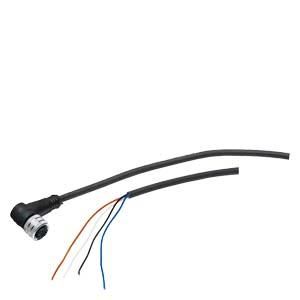

Cable for MV400 and VS100 lights, with angled socket M12 on the light side, one end open, 10m PUR cable, 4-pin, 4x0.34mm2, suitable lights: 6GF3400-0LT01-7BA1, 6GF3400-0LT01-8DA1, 6GF9004-7AA01, ...- 7BA01, -8BA0, ...- 8CA01, ...- 8DA01. SIMATIC MVConnection cable for ring lights, M12 / open strandsHighly flexible sensor cable for connecting an external ring light to a stationary optical reader. The cable connects external ring lights to the control cabinet (24 V).

Property	Value
Number of cores:	4
Outer diameter approx.:	4.7 mm
Low smoke according to EN 61034-2:	no
Sheath color:	black
Material of the core insulation:	other
Sheath material:	Polyurethane (PUR)
Permissible external cable temperature during assembly/handling:	-15 to 80 °C
Permissible external cable temperature after assembly without vibration:	-15 to 80 °C
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	none
Min. permissible bending radius, flexible use with forced guidance:	23.599999999 mm
Min. permissible bending radius, flexible use/free movement:	23.599999999 mm
Min. permissible bending radius, stationary use/fixed installation:	23.599999999 mm
