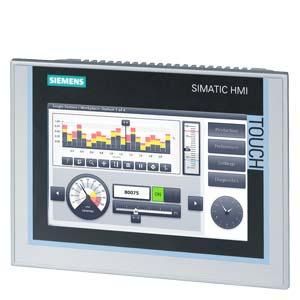

Siemens 6AV2124-0GC01-0AX0 Comfort Panel HMI TP700 Comfort

Siemens 6AV2124-0GC01-0AX0 Comfort Panel HMI TP700 Comfort

In stock

SKU: 356405

Price on request

€1,536.33

€0

Overview

SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7' widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 12MByte configuration memory, Windows6.0, configurable from WinCC Comfort V11 SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7' widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS-DP interface, 12MByte configuration memory, Windows6.0, configurable from WinCC Comfort V11 SIMATIC HMI Comfort Panel TP700 Comfort

Property	Value
Supply voltage for DC:	19.2 to 28.8 V
Protection class (IP), front:	IP65
Usable project memory/user memory:	12000 kByte
Number of HW interfaces Industrial Ethernet:	1
Number of HW interfaces USB:	2
Number of HW interfaces serial RS-485:	1
Type of supply voltage:	DC
Design of the display:	TFT
Screen diagonal:	7 inches
With color display:	yes
With alpha keyboard:	yes
With numeric keyboard:	yes
Number of PROFINET interfaces:	1
Width of front:	214 mm
Height of front:	158 mm
Installation depth:	63 mm
Operating temperature:	0 to 50 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
DIN rail mounting possible:	no
Supports protocol for Data highway:	no
Supports protocol for other bus systems:	yes
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIBUS:	yes
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	yes
Number of colors of the display:	16777216
Number of pixels, horizontal:	800
Number of pixels, vertical:	480
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	50
With printout:	yes
Number of online languages:	32
Additional software components, loadable:	yes
With software interfaces:	no
Supports protocol for LON:	no
Radio standard GPRS:	no
Radio standard GSM:	no
Radio standard UMTS:	no
