Siemens 6AV3688-3EH47-0AX0 Key panel

In stock

SKU: 353362

Price on request

€1,696.93

€0

Overview

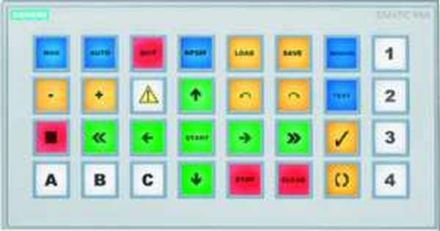

SIMATIC HMI KP32F PN, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16DE+16DE/DA, 4 Safety DE pins, DC 24V loop-through, parameterizable from STEP 7 V5.5 SIMATIC HMI KP32F PN, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16DE+16DE/DA, 4 Safety DE pins, DC 24V loop-through, parameterizable from STEP 7 V5.5 SIMATIC HMI Key Panel KP32F PN

Property	Value
Number of PROFINET interfaces:	2
Front installation possible:	yes
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for safety functions:	yes
IO-Link Master:	no
With optical interface:	no
Rack mounting possible:	no
DIN rail mounting possible:	no
Supports protocol for ASI:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for CAN:	no
Supports protocol for Data-Highway:	no
Supports protocol for DeviceNet:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for INTERBUS:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for KNX:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFIBUS:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for PROFINET IO:	yes
Supports protocol for PROFIsafe:	yes
Supports protocol for SafetyBUS p:	no
Supports protocol for SERCOS:	no
Supports protocol for other bus systems:	no
Supports protocol for SUCONET:	no
Supports protocol for TCP/IP:	no
Supply voltage for DC:	20.4 to 28.8 V
Wall/direct mounting possible:	no
Number of buttons:	32
With configurable buttons:	yes
Number of indicator lamps:	8
Number of color modes for LED:	5
With button and indicator lamp test:	yes
Supports protocol for LON:	no
Number of HW interfaces Industrial Ethernet:	2
Protection class (IP), front:	IP65
Height of front:	155 mm
Width of front:	295 mm
Installation depth:	69 mm
Operating temperature:	0 to 55 °C
Type of supply voltage:	DC
Number of digital outputs:	16
Number of digital inputs:	32
Radio standard GPRS:	no
Radio standard GSM:	no
Radio standard UMTS:	no
