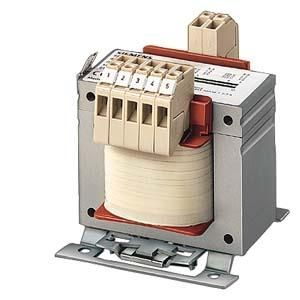

Siemens 4AM2342-5AN00-0EA0 transformer SITAS IP00

In stock

SKU: 341020

Price on request

€72.82

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 025 /0, UPRI(V):400+/-5%, USEC(V):24, ISEC(A):1, 04, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREW, EN 61558-2-6 >UL/CSA-RECOGNIZED< >SAFETY TRANSFORMER< The 4AM transformers combine all the properties of single-phase safety, isolating, control or mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	25 VA
Height:	79 mm
Width:	62 mm
Depth:	78 mm
Primary voltage 1:	420 V
Secondary voltage 1:	24 V
Suitable for Series installation:	no
Short-circuit proof:	no
Primary voltage 2:	400 V
Primary voltage 3:	380 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	17.6 %
Toroidal core:	no
Insulation class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
