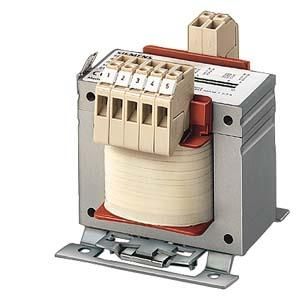

Siemens 4AM5542-4TT10-0FA0 transformer SITAS IP00

In stock

SKU: 340943

Price on request

€413.28

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):0, 8 /3, 4, UPRI(V):230+/-5%, USEC(V):230, ISEC(A):3, 48, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREW, EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AM transformers combine all the properties of single-phase safety, isolating, control or mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	800 VA
Height:	144 mm
Width:	152 mm
Depth:	126 mm
Primary voltage 1:	242 V
Secondary voltage 1:	230 V
Suitable for Series installation:	no
Short-circuit proof:	no
Primary voltage 2:	230 V
Primary voltage 3:	218 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	3.1 %
Toroidal core:	no
Insulation class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
