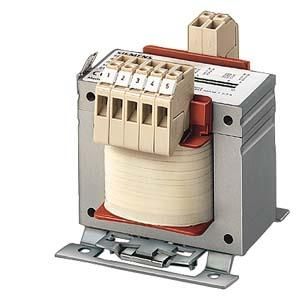

Siemens 4AM5742-5AT10-0FA0 transformer SITAS IP00

In stock

SKU: 350129

Price on request

€503.60

€0

Overview

TRANSFORMER SITAS, PHASES:1, PN/PN(S6)(KVA):1 /5, UPRI(V):400+/-5%, USEC(V):230, ISEC(A):4, 35, F(HZ):50...60, SWITCHING SIZE/SHIELDING:II0 /0, TA/ISOKL:40 /B, IP00, CONNECTION:SCREW/FLAT PLUG CONNECTION, MOUNTING:SCREW, EN 61558-2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL TRANSFORMER< >ISOLATING TRANSFORMER< The 4AM transformers combine all the properties of single-phase safety, isolating, control or mains transformers. This means you can master every application with flying colors. The control transformers are also characterized by their short-time performance.

Property	Value
Rated apparent power:	1000 VA
Height:	144 mm
Width:	152 mm
Depth:	132 mm
Primary voltage 1:	420 V
Secondary voltage 1:	230 V
Suitable for series installation:	no
Short-circuit proof:	no
Primary voltage 2:	400 V
Primary voltage 3:	380 V
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	3.04 %
Toroidal core:	no
Insulating material class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
