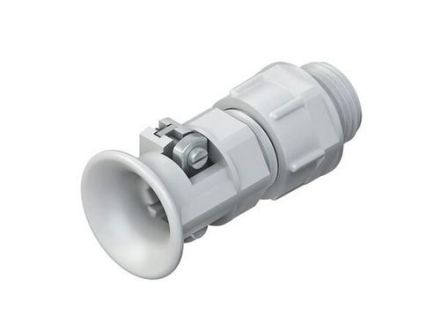

CONUS cable gland with Pg connection thread in accordance with DIN 40430, with external strain relief and bend protection trumpet, glass fiber reinforced, with flame protection, halogen-free. Nominal size: Pg 13.5 for cable Ø: 9 - 11 mm Connection thread length: 9 mm Wrench size 1: 22 mm Wrench size 2: 24 mm Glow wire test in accordance with DIN EN 60695-2-10+11/VDE 0471-2-10+11: 650°C Protection class: IP54 with connection thread sealing ring 987/...(please order separately!): IP65 Operating temperature range: -40° to 100°C Material of screw connection body: Polyamide Material of sealing ring: SBR/NBR Material of pressure ring: galvanized blue pass. Steel color: light gray RAL: 7035 (similar)
