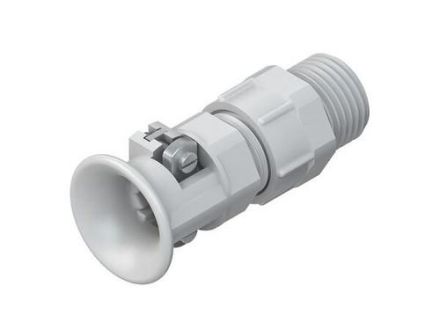

Kleinhuis 1230M2013 metric M20/PG13 CONUS screw connection

In stock

SKU: 796197

Price on request

€1.36

€0

Overview

with external strain relief and cable bend protection, polyamide, glass fiber reinforced, with flame retardant, halogen-free, sealing ring: SBR/NBR, IP54, with connection thread seal IP65, grey, with metric connection thread for cable diameter. 8-12 mm

Property	Value
Wrench size:	24 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	20
Suitable for cable diameters:	8 to 12 mm
Protection class (IP):	IP54
Operating temperature:	-40 to 100 °C
Halogen-free:	yes
Thread length:	11 mm
Thread type:	metric
Design:	straight
Color:	light gray
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	26 mm
Type of seal:	Sealing ring
Impact-resistant:	yes
Bending protection:	yes
RAL number:	7035
Material quality:	Polyamide (PA)
Glass fiber reinforced:	yes
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
