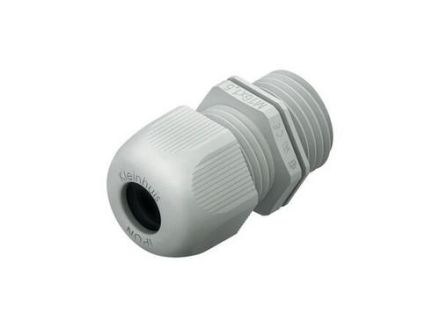

Kleinhuis 1234M1601 metric IPON cable gland

In stock

SKU: 796227

Price on request

€0.58

€0

Overview

IPON cable gland tested according to DIN EN 50262, with metric connection thread according to DIN EN 60423, with integrated strain relief. Nominal size: M 16 for cable Ø: 5.5 - 8 mm Connection thread length: 8 mm Wrench size: 19 mm Glow wire test according to 0471 / DIN IEC 695 Part 2-1: 850 ° Protection class: IP68, 5 bar Flame retardancy: UL 94 VO Operating temperature range: -20 ° to 100 ° C Material of screw connection body: Polyamide Material of sealing ring: CR / NBR Color: light gray RAL: 7035 (similar)

Property	Value
Width:	19 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	5.5 to 8 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Design:	straight
Color:	light gray
Material:	plastic
With strain relief:	no
Surface:	untreated
Hexagon corner dimension:	21 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Glass fiber reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
