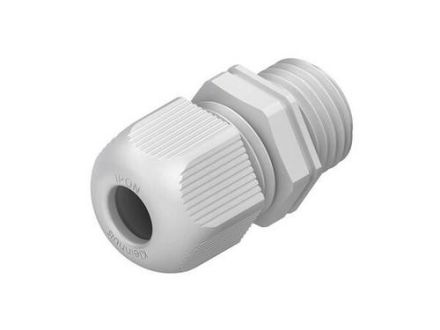

Kleinhuis 1234P0703 Pg 7 3-5.5mm IPON cable gland

In stock

SKU: 796585

Price on request

€0.77

€0

Overview

IPON cable gland, with Pg connection thread according to DIN 40430, with integrated strain relief. Nominal size: Pg 07 for cable Ø: 3 - 6 mm Connection thread length: 8 mm Wrench size: 15 mm Glow wire test according to 0471/DIN IEC 695 Part 2-1: 850 ° Protection class: IP68, 5 bar Flame retardancy: UL 94 VO Operating temperature range: -20 ° to 100 ° C Material of screw connection body: Polyamide Material of sealing ring: CR/NBR Color: jet black RAL: 9005 (similar)

Property	Value
Width:	15 mm
Thread pitch:	1.27 mm
Nominal thread size metric/PG:	7
Suitable for cable diameters:	3 to 5.5 mm
Protection class (IP):	IP68
Operating temperature:	-30 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	PG
Design:	straight
Color:	black
Material:	plastic
With strain relief:	no
Surface:	untreated
Hexagon corner dimension:	16.8 mm
Type of seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Glass fiber reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-Zone Gas:	without
For Ex-Zone Dust:	without
