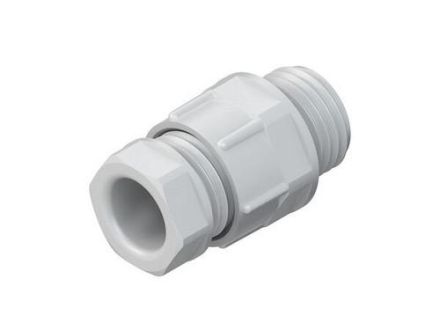

CONUS cable gland in accordance with former DIN 46320, with Pg connection thread in accordance with DIN 40430, halogen-free. Nominal size: Pg 11 for cable Ø: 6 - 9 mm Connection thread length: 8 mm Wrench size 1: 19 mm Wrench size 2: 22 mm Glow wire test in accordance with DIN EN 60695-2-10+11/VDE 0471-2-10+11: 650°C Protection class: IP54 with connection thread sealing ring 987/...(please order separately!): IP65 Operating temperature range: -30° to 100°C Material of screw connection body: Polyamide Material of sealing ring: SBR/NBR Material of pressure ring: galvanized blue pass. Steel color: light gray RAL: 7035 (similar)
