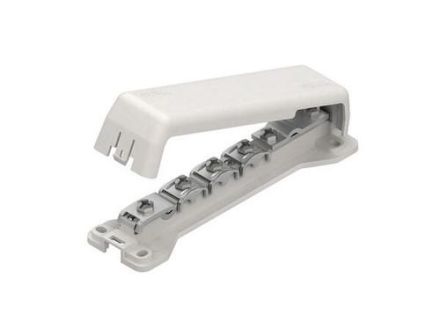

Kleinhuis 1309 with cover equipotential bonding rail

In stock

SKU: 796036

Price on request

€5.97

€0

Overview

Equipotential bonding rail, according to 0618-1 with sealable hinged cover, halogen-free. Dimensions (approx. dimensions) H x W x L: 42 x 51 x 187.5 mm Connection options: 1 x 2.5 mm² - 6 mm² 6 x 35 mm² - 25 mm² 1 strip iron up to 40 x 4 mm and/or 1 round conductor Ø 8 mm - Ø 10 mm 1 x 50 mm² Housing material: PP (polypropylene) Terminal rail material: nickel-plated copper Color: light gray RAL: 7035 (similar)

Property	Value
Length:	187.5 mm
Total number of round conductor connections:	1
Width:	51 mm
Height:	40.5 mm
Design:	Fixed structure
Version:	with cover
Insulator:	yes
Material of the contact rail:	copper
Surface of the contact rail:	other
Material of the terminal:	copper
Surface of the terminal:	galvanically/electrolytically galvanized
Number of connections for round conductors 10 mm:	1
Number of connections for flat conductors up to 30 mm:	1
Number of connections for cables up to 6 mm² rigid:	1
Number of connections for cables up to 16 mm² rigid:	6
Number of connections for cables up to 25 mm² rigid:	6
Number of connections for cables up to 95 mm² rigid:	1
