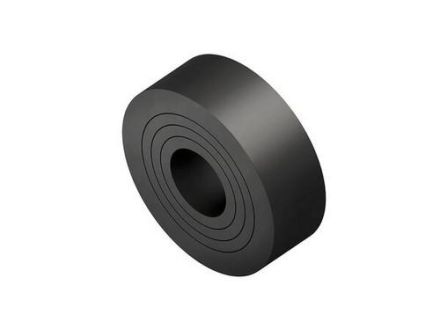

Kleinhuis 1603/16 DIN46320 PG16 cut-out sealing ring

In stock
SKU: 795645
€0.64
Into a basketIn the basketGo

Overview

Sealing ring can be cut out according to former DIN 46320, with red marking strip, can be used for CONUS cable glands (except series 1531/...) and brass cable glands with Pg and metric internal thread on the intermediate connector, halogen-free. Pre-assembly in the cable glands listed below is possible depending on the quantity, PU and additional charge on request. The article numbers of the desired cable glands must be provided with the additional information A/S when ordering, e.g. .../09A/S. Nominal size: Pg 16 Outside Ø: 20.4 mm Inside Ø: 7.5 / 10 / 12.5 / 15 mm Height: 7 mm Operating temperature range: -40° to 100°C Material: SBR/NBR Color: black with red marking stripe for CONUS cable glands: 1250/..., 1250M..., 1251/..., 1252/..., 1230/..., 1230M..., 1235/..., 250/..., 251/..., 252/..., and brass 927/... for brass cable glands: 490/..., 490M..., 850/..., 850M..., 530/..., 530M..., 930/..., 930M..., 850ML..., 923/..., 923M..., 924/..., 924M..., 920/..., 920M...

Property Value
Suitable for thread size PG: 16
Version: other
Outer diameter: 20.4 mm
Inner diameter: 7.5 mm
Suitable for thread size (metric): 20
Thickness: 7 mm
Material: Rubber

Characteristics

Inner diameter7.5 mm
HABDIN46320 PG16
ManufacturerKleinhuis
HAN1603/16
GTIN4011126017083
VersionOther
Outer diameter20.4 mm
Strength7 mm
MaterialRubber
Kleinhuis 1603/16 DIN46320 PG16 cut-out sealing ring
Kleinhuis 1603/16 DIN46320 PG16 cut-out sealing ring
€0.64
