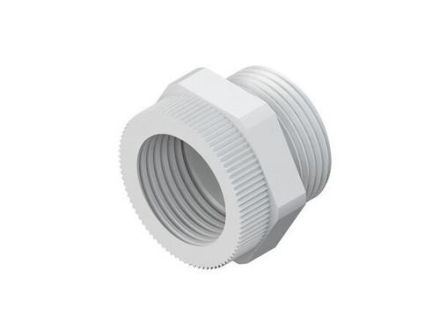

Kleinhuis 1897P21M32 PG21/M32 PA adapter

In stock
SKU: 795604
€1.13
Into a basketIn the basketGo

Overview

Adapter with Pg connection thread according to DIN 40430 and metric internal thread according to DIN EN 60423, glass fiber reinforced, halogen-free. External thread: Pg 21 Internal thread: M 32 External thread length: 11 mm Internal thread length: 10.5 mm Wrench size: 37 with connecting thread sealing ring 987/... (please order separately!) : IP68 Operating temperature range: -30° to 100°C Material: Polyamide Color: light gray RAL: 7035 (similar)

Property Value
Wrench size: 37 mm
Thread pitch: 1,588 mm
Nominal thread size metric/PG: 21
Operating temperature: -30 to 100 °C
Halogen-free: yes
Thread length: 11 mm
Thread type: PG
Design: straight
Color: light gray
Material: plastic
With strain relief: no
Surface: untreated
Hexagon corner dimension: 41 mm
Impact-resistant: yes
Bending protection: no
RAL number: 7035
Material quality: Polyamide (PA)
Fiberglass reinforced: yes
With lock nut: no
Multiple sealing insert: no
Flat cable gland: no
Dividable gland: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG21
Fiberglass reinforcedYes
Wrench size37 mm
HABPG21/M32 PA
Minimal order10 pcs
ManufacturerKleinhuis
HAN1897P21M32
GTIN4011126377644
VersionStraight
Operating temperature-30 to 100 °C
Thread typePG
Thread length11 mm
Thread1,588 mm
Halogen freeYes
With strain reliefNo
SurfaceUntreated
RAL number7035
MaterialPlastic
Material qualityPolyamide (PA)
