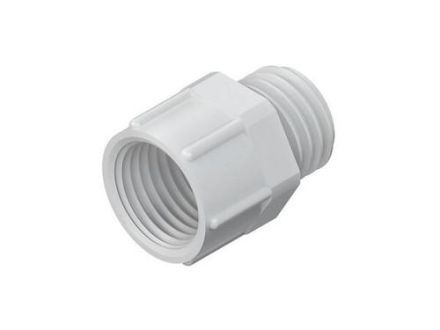

Kleinhuis 1898M20P13 M20/PG13.5 PA adapter

In stock
SKU: 795601
€0.48
Into a basketIn the basketGo

Overview

Adapter with metric connection thread according to DIN EN 60423 and Pg internal thread according to DIN 40430, glass fiber reinforced, halogen-free. External thread: M 20 Internal thread: Pg 13.5 External thread length: 11 mm Internal thread length: 12 mm Wrench size: 24 with connecting thread sealing ring 987M... (please order separately!) : IP68 Operating temperature range: -30° to 100°C Material: Polyamide Color: light gray RAL: 7035 (similar)

Property Value
Wrench size: 24 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 20
Operating temperature: -30 to 100 °C
Halogen-free: yes
Thread length: 11 mm
Thread type: metric
Design: straight
Color: light gray
Material: plastic
With strain relief: no
Surface: untreated
Hexagon corner dimension: 26 mm
Type of seal: Sealing ring
Impact-resistant: yes
Bending protection: no
RAL number: 7035
Material quality: Polyamide (PA)
Glass fiber reinforced: yes
With lock nut: no
Multiple sealing insert: no
Flat cable gland: no
Dividable gland: no
Explosion-tested version: no
For Ex-Zone Gas: without
For Ex-Zone Dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG20
Fiberglass reinforcedYes
Wrench size24 mm
HABM20/PG13.5 PA
ManufacturerKleinhuis
HAN1898M20P13
GTIN4011126377873
VersionStraight
Operating temperature-30 to 100 °C
Thread typeMetric
Thread length11 mm
Thread1.5 mm
Halogen freeYes
With strain reliefNo
SurfaceUntreated
RAL number7035
MaterialPlastic
Material qualityPolyamide (PA)
Kleinhuis 1898M20P13 M20/PG13.5 PA adapter
