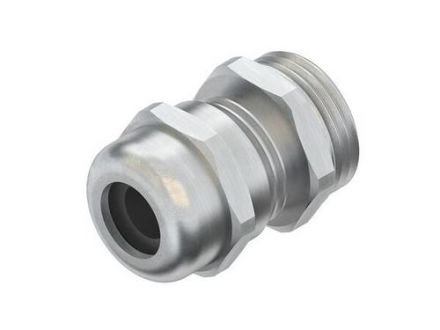

Kleinhuis 2532/29A Ms PG29 screw connection

In stock
SKU: 796410
€33.11
Into a basketIn the basketGo

Overview

Cable gland, with Pg connection thread according to DIN 40430, sealing ring and O-ring on the connection thread, with long ejectable sealing insert (full insulation), halogen-free and silicone-free. Nominal size: Pg 29 for cable Ø: 26 - 28 mm Connection thread length: 8 mm Wrench size: 40 mm Protection class: IP68, 5 bar Operating temperature range: -40° to 120°C Material of screw connection body: nickel-plated brass Material of one-piece sealing ring: TPE Material of O-ring: NBR

Property Value
Wrench size: 40 mm
Thread pitch: 1,587 mm
Nominal thread size metric/PG: 29
Suitable for cable diameter: 26 to 28 mm
Protection class (IP): IP68
Operating temperature: -40 to 120 °C
Halogen-free: yes
Thread length: 8 mm
Thread type: PG
Design: straight
Material: metal
With strain relief: no
Surface: nickel-plated
Hexagon corner dimension: 46.2 mm
Type of seal: Sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: Brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG29
Fiberglass reinforcedNo
Suitable for cable diameter26 to 28mm
Wrench size40 mm
HABMsPG29
ManufacturerKleinhuis
HAN2532/29A
GTIN4011126014945
VersionStraight
Operating temperature-40 to 120 °C
Thread typePG
Thread length8 mm
Thread1,587 mm
Halogen freeYes
With strain reliefNo
SurfaceNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
