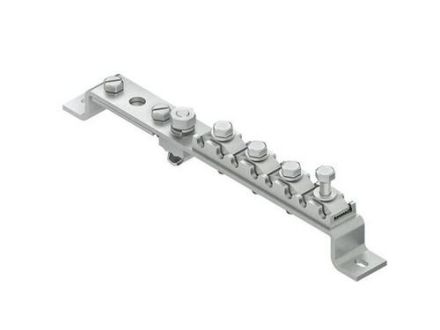

Kleinhuis 308/2 without cover 65x30-302mm equipotential bonding rail

In stock

SKU: 796698

Price on request

€38.47

€0

Overview

Equipotential bonding bar, without cover, to ensure equipotential bonding according to DIN0100 parts 410/540 and lightning protection equipotential bonding according to DIN0185. Dimensions (approx. dimensions) H x W x L: 65 x 30 x 302 mm Connection options: 8 x 4 -25 mm² 1 strip iron up to 40 x 4 mm 1 round conductor Ø 8 - 10 mm Material clamping rail/tab: steel, hot-dip galvanized Material clamping piece: zinc die-cast Material pressure piece and clamping plate: steel, hot-dip galvanized Material screws and nuts: steel, galvanized

Property	Value
Length:	302 mm
Total number of round conductor connections:	1
Width:	30 mm
Height:	65 mm
Design:	Fixed structure
Version:	terminal only
Insulator:	no
Material of the contact rail:	steel
Surface of the contact rail:	hot-dip galvanized
Material of the terminal:	steel
Surface of the terminal:	hot-dip galvanized
Number of connections for round conductors 8 mm:	1
Number of connections for round conductors 10 mm:	1
Number of connections for round conductors 8-10 mm:	1
Number of connections for flat conductors up to 40 mm:	1
Number of connections for cables up to 6 mm² rigid:	8
Number of connections for cables up to 16 mm² rigid:	8
Number of connections for cables up to 25 mm² rigid:	8
Explosion-tested version:	no
