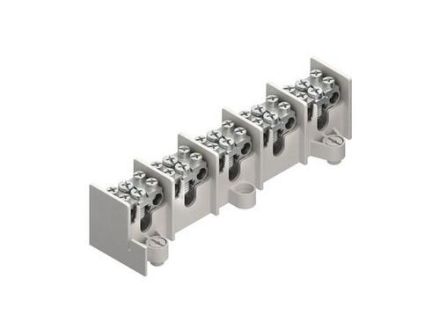

Main line branch terminal 35 mm² in accordance with DIN0603-2, for fastening lengthwise and crosswise on a TS 35 mm mounting rail with connection dimensions in accordance with DIN EN 60715, halogen-free. Dimensions (approx. dimensions) H x W x L: 43 x 52 x 146.5 mm Inlet connection options: max. 2 x 35 mm² Outlet connection options: 4 poles, each with 2 outlets up to 25 mm² per pole Number of poles: 4 Insulating part material: PA Pole terminal material: brass Clamping screw material: galvanized. Steel with combination Phillips Nominal voltage: 400 V Color: light gray RAL: 7035 (similar)
