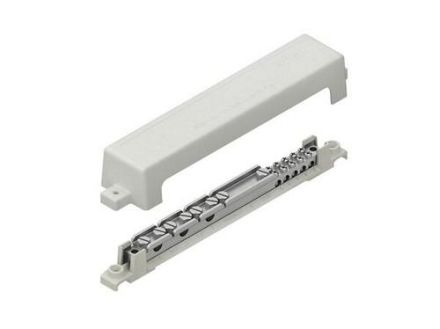

Kleinhuis 409 with cover equipotential bonding rail

In stock

SKU: 796039

Price on request

€28.31

€0

Overview

Equipotential bonding rail, with sealable cover, with marking of the connections, to ensure equipotential bonding according to DIN0100 parts 410/540 and lightning protection equipotential bonding according to DIN0185, halogen-free. Dimensions (approx. dimensions) H x W x L: 47 x 25 x 267 mm Connection options: 5 x 2.5 -25 mm² 2 x 35 - 70 mm² 1 flat conductor up to 30 x 5 mm 1 round conductor Ø 8-10 mm 1 x 50 mm² Housing material: PP (polypropylene) Clamping rail material: nickel-plated brass Clamping lug material: galvanized steel Screw material: galvanized steel Color: light gray RAL: 7035 (similar)

Property	Value
Length:	267 mm
Total number of round conductor connections:	1
Width:	19 mm
Height:	47 mm
Design:	Fixed structure
Version:	with cover
Insulator:	yes
Material of the contact rail:	brass
Surface of the contact rail:	other
Material of the terminal:	brass
Surface of the terminal:	hot-dip galvanized
Number of connections for round conductors 8 mm:	1
Number of connections for round conductors 10 mm:	1
Number of connections for round conductors 8-10 mm:	1
Number of connections for flat conductors up to 40 mm:	1
Number of connections for cables up to 6 mm² rigid:	5
Number of connections for cables up to 16 mm² rigid:	5
Number of connections for cable up to 25 mm² rigid:	5
Number of connections for cable up to 95 mm² rigid:	2
