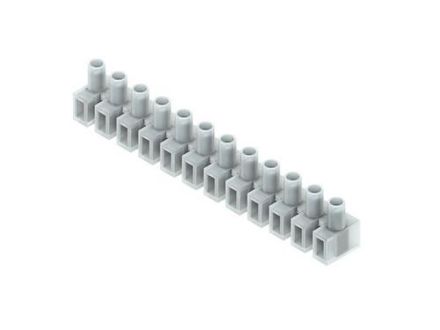

Connection terminal according to DIN EN 60998, with 12 detachable terminal points, halogen-free. Dimensions (approx. dimensions) H x W x L: 20 x 15.5 x 117 mm Clamping range single-wire, rigid, flexible: 1.5 - 6.0 mm² Connection options single-wire: 5 x 1.5 mm², 2 x 2.5 mm², 2 x 4.0 mm², 1 x 6.0 mm² Connection options rigid, flexible: 4 x 1.5 mm², 2 x 2.5 mm², 2 x 4.0 mm², 1 x 6.0 mm² Material insulating part: PA Material clamping bolt: brass Material clamping screws: galvanized steel Max. ambient temperature according to EN 60998: T85 Nominal voltage: 450 V Color: natural
