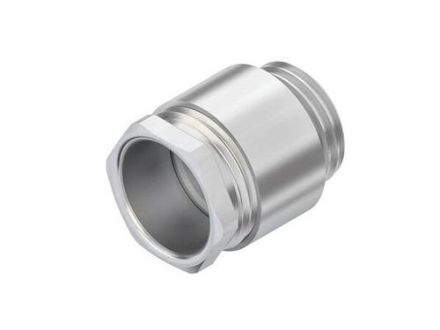

Kleinhuis 490M2521 M25 for cable D: 17-19mm brass cable gland

In stock
SKU: 796561
€6.96
Into a basketIn the basketGo

Overview

Cable gland with metric connection thread in accordance with DIN EN 60423, with round intermediate socket, with pressure rings and sealing ring, halogen-free. Nominal size: M 25 for cable Ø: 17 - 19 mm Connection thread length: 7 mm Wrench size: 28 mm Operating temperature range: -30° to 100°C Protection class: IP54 with connection thread sealing ring 987M... (please order separately!): IP65 Material of gland body: nickel-plated brass Material of pressure ring: galvanized, blue pass. Steel sealing ring material: SBR/NBR

Property Value
Wrench size: 28 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 25
Suitable for cable diameters: 17 to 19 mm
Protection class (IP): IP54
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 7 mm
Thread type: metric
Design: straight
Material: metal
With strain relief: no
Surface: nickel-plated
Hexagon corner dimension: 31.2 mm
Type of Seal: Sealing ring
Impact resistant: yes
Bending protection: no
Material quality: Brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable gland: no
Dividable Screw connection: no
Explosion-tested version: no
For Ex-Zone Gas: without
For Ex-Zone Dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG25
Fiberglass reinforcedNo
Suitable for cable diameter17 to 19 mm
Wrench size28 mm
HABM25 for cable D: 17-19mm brass
ManufacturerKleinhuis
HAN490M2521
GTIN4011126363791
VersionStraight
Operating temperature-40 to 100 °C
Thread typeMetric
Thread length7 mm
Thread1.5 mm
Halogen freeYes
With strain reliefNo
SurfaceNickel-plated
IP protection)IP54
MaterialMetal
Material qualityBrass
