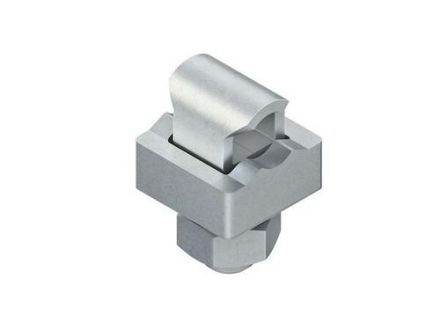

Kleinhuis 503/1 for round wire 8-10mm connection terminal

In stock
SKU: 795634
€5.15
Into a basketIn the basketGo

Overview

Connection terminal in accordance with DIN EN 62561 (VDE 0185-561), simple, for connecting round conductors, e.g. to flat profiles or other parts of the lightning protection system. Dimensions (approx. dimensions) L x W x H: 25 x 25 x 40 mm Connection opening clamping screw: 1 x Ø11 mm Thread clamping screw: M10 for round conductors: Ø8 - Ø10 mm Material clamping body: zinc die-cast Material clamping screw/nut: steel, hot-dip galvanized. Spring ring material: stainless steel

Property Value
Design: Connection terminal
Clamping range round conductor: 8 to 10 mm
Connection hole: 10.5 mm
Material: Malleable cast iron

Characteristics

HAB503/1 for round wire 8-10mm
ManufacturerKleinhuis
HAN503/1
GTIN4011126403015
DesignConnection terminal
MaterialMalleable cast iron
