Kleinhuis BT1058.3 105x165x66mm length 250mm T-piece

In stock
SKU: 796682
€42
Into a basketIn the basketGo

Overview

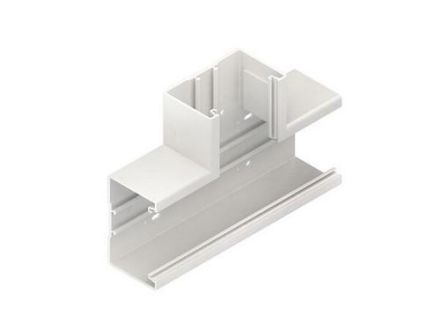

Device duct T-piece 90°, single-section, symmetrical, with two continuous mounting profiles in the back section and continuous perforation in the duct back, including three duct couplings KUV, butt connector BSV65 for exact connection to the duct base please order separately.certified! Dimensions (approx. dimensions) H x D: 105 x 66 mm Main and outlet cross-section cover opening: 80 mm Length in main direction: 250 mm Length in outlet direction: 165 mm for device duct base: BU651058... Material: PVC-hard (polyvinyl chloride) Color: pure white RAL: 9010 (similar)

Property Value
Width: 105 mm
Depth: 66 mm
Width of the branch: 105 mm
Color: pure white
RAL number: 9010
Number of upper parts: 1
Upper part width 1: 80 mm
Symmetrical: yes
Design: Lower part
Material: Plastic
Material quality: Polyvinyl chloride (PVC)
Halogen-free: no
Surface: untreated
With protective film: yes
With channel connector: yes
Mounting holes in the base: yes
Mounting type of upper parts: internal
With cable retaining clip: yes

Characteristics

HABBT1058.3 105x165x66mm length 250mm
Minimal order2 pcs
ManufacturerKleinhuis
HANBT1058.3
GTIN4011126052862
VersionBottom part
Width105 mm
Halogen freeNo
SurfaceUntreated
RAL number9010
Depth66 mm
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
