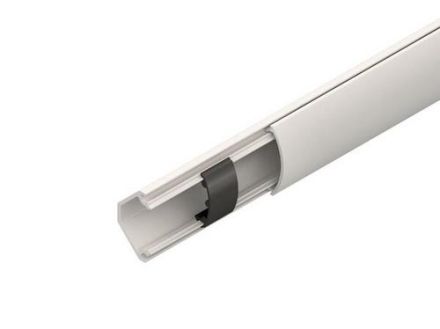

Kleinhuis EDK35.3 25x35 pure white corner duct

In stock
SKU: 795495
€5.13
Into a basketIn the basketGo

Overview

Corner duct, with cover and single-row fastening holes in the base, including 6 retaining clips 638/35 each 2 m delivery length, can be combined with electrical installation ducts and skirting board ducts, contains halogen. Retaining clips: 6 x 638/35 can be combined with electrical installation duct: HKL1022 HKL2020 HKL2030 HKL2031 HKL2052 can be combined with skirting board duct system: SDK70 Dimensions (approx. dimensions) H x W x D: 30 x 35 x 30 mm single-row floor perforation: 6.5 x 12 mm and Ø 2.7 mm floor hole spacing Grid dimension: 125 mm Delivery length L: 2000 mm Material: PVC-hard (polyvinyl chloride) Color: pure white RAL: 9010 (similar)

Property Value
Height: 30 mm
Width: 35 mm
Length: 2000 mm
With cable retaining clip: yes
Color: pure white
RAL number: 9010
Lower part with partition wall: without
Material: plastic
Halogen-free: no
Material quality: Polyvinyl chloride (PVC)
Leg length: 30 mm
Usable cross-section: 360 mm²
With protective film: no

Characteristics

HABEDK35.3 25x35 pure white
Minimal order2 meters
ManufacturerKleinhuis
HANEDK35.3
GTIN4011126061260
Width35 mm
Halogen freeNo
Height30 mm
Length2000 mm
RAL number9010
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Kleinhuis EDK35.3 25x35 pure white corner duct
Kleinhuis EDK35.3 25x35 pure white corner duct
