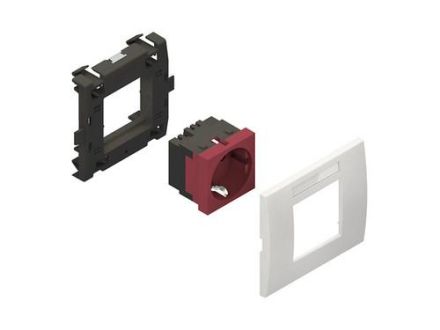

Device installation system, pre-assembled, simple, horizontal, pre-wired ready for connection, complete with adapter and cover frame, with socket insert for IT circuits, for snapping into the cover receiving contour of the device ducts BU65... . Recommended for normal use. For special uses (e.g. schools, workshops, sports halls) we recommend using our device installation boxes KED... in conjunction with an appropriate switch range. Set consists of: 1 x device adapter, simple, module 45, with 2 spring clips 1 x socket insert, simple, horizontal, with plug-in terminals for cables 1.5 - 2.5 mm², 2-pole, with increased contact protection 1 x cover frame, simple, module 45, including viewing window with label for labeling field 1 x assembly instructions. The cross-section of approx. 1134 mm² must be deducted from the usable cross-section of the device duct. Dimensions (approx. dimensions) H x W: 83 x 93.5 mm for lid opening: 80 mm Nominal voltage: 250V / 16A Socket insert color: ruby red RAL: 3003 (similar) Cover frame color: pure white RAL: 9010 (similar)
