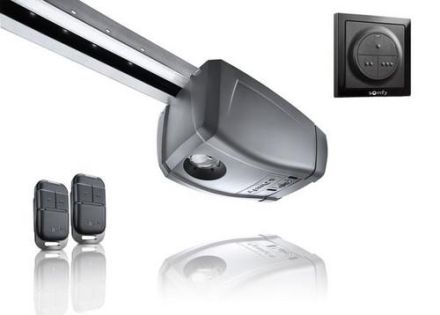

The garage door drive solution is used in private homes to motorize garage doors (swing doors, sectional doors) with a door height of up to 2.4 m, a door area of up to 15 m² or a door weight of max. 250 kg. - Learning run and operation in less than 90 seconds - Special PROG button for teaching in the radio (hand-held) transmitter - Removable colored terminal blocks - External lighting with separate control or synchronized with the door travel - Automatic closing mode - Pedestrian or ventilation position - Compatible with BUS and 4-wire light barrier safety strip - Warning light with integrated antenna - Networking with the smart home controls TaHoma and Connexoon, other Somfy products such as. B. Cameras and light controls as well as smart home solutions from third-party suppliers for additional security and convenience Technical data Push/pull force (peak): 1000N Max. speed: 10 cm/ sec Number of working cycles / day: 20 cycles, tested to 36500 cycles Radio technology/frequency: io, 868 870 MHz io, bi-directional, frequency hopping, 128 bit AES encryption Programmable radio transmitters: unidirectional: 38 (e.g. KeyGo 4 io), bidirectional: unlimited Integrated lighting: LED, separately controllable and synchronous to the door travel Power supply: 220-230 V AC - 50-60 Hz Motor power supply: 24 V DC 24 V DC Protection class: Class 2: Double insulation Degree of protection: IP20 Operating temperature: -20 °C to 60 °C Drive dimensions (L x H x W): 404 x 139.5 x 224.5 mm Connection options External lighting: 230V - max. 500W - Class 2: Double insulation Supply voltage accessories: 24 V - max. 400 mA 24 V controlled: for self-test light barrier TX/RX warning light: 24 V - 15W Safety input: potential-free contact: NC, compatible with light barrier (TX/RX, BUS) and safety contact strip with potential-free contact Wicket door: potential-free contact: NC Button input: potential-free contact: NO Emergency power battery: yes, compatible with emergency power battery 9.6 V - 1600 mAh (item no. 9001001) Autonomy: 24 hours, 3 cycles, depending on the gate Charging time 48 hours External antenna: yes, compatible with io antenna (item no. 9013953) Operating functions Control of the lighting output: separate and synchronous to the gate travel Time delay of the lighting output: 60 seconds after the gate movement Pre-warning time warning light: 2 seconds before the gate movement Automatic closing function: yes Ventilation/pedestrian opening: yes, can be controlled separately Function when obstacle is detected: reversing (full opening) Sensitivity of obstacle detection: adjustable, 3 levels Opening speed: maximum speed Closing speed: adjustable Soft stop: adjustable Diagnostics: 4 status LEDs in real time
