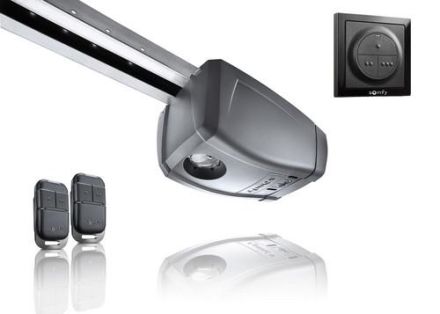

The garage door drive solution is used in the private residential sector to motorize garage doors (swing doors, sectional doors) with a door height of up to 2.35 m, a door area of up to 10 m² or a door weight of max. 150 kg. - One drive, three applications: 230 V / battery / solar operation - All settings and remote controls are pre-programmed - Ready for use after 60 seconds - Burglar-proof gear - Automatic obstacle detection - Sensitivity of obstacle detection and soft stop adjustable - Operation in the event of a power failure with emergency battery (optional) - Manual emergency release (optional) Technical data Push/pull force (peak): 800N Max. speed: 12 cm/ sec Number of working cycles / day: 20 cycles, tested to 10,000 cycles Radio technology/frequency: RTS, 433.42 MHz Programmable radio transmitters: 32 Integrated lighting: LED Power supply: 230 V AC - 50 Hz Motor power supply: 24 V DC 24 V DC Protection class: Class 2: Double insulation Degree of protection: IP20 Operating temperature: -20 °C to 60 °C Drive dimensions (L x H x W): 269, 7 x 152, 7 x 173 mm Connection options Supply voltage accessories: 24 V - max. 500 mA Warning light: 24 V - 15W Light barrier: compatible with light barrier TX/RX Button input: potential-free contact: NO Emergency power battery: compatible with emergency power battery item no. 9 001 001 External antenna: compatible with RTS antenna item no. 2 400 472 Operating functions Forced operation: by continuously pressing button A Lighting switch-off delay Fixed: 30 seconds after a door movement Warning light pre-warning time: 2 seconds before the door movement Function when obstacle is detected: reversing (fully opening) when closing Sensitivity of obstacle detection: adjustable, 4 levels Opening speed: 12 cm/sec (max.) Closing speed: 10 cm/sec (max.) Soft stop: adjustable, 3 levels
