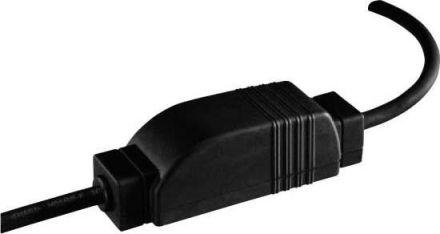

As an intermediate plug, enables the control of a wired venetian blind drive with mechanical limit switch via io radio. The vertical positioning of the venetian blind and the slat inclination are both approached and reported back by 2 separate movements. These positions can now be called up as scenarios either manually, time-controlled or sensor-controlled. Complex runtime settings for each blind are no longer necessary. Suitable for all classic venetian blinds with visible ladder cords for the slat inclination. - Quick installation between the drive plug (STAS3) of a 4-wire 230 V venetian blind drive and the power supply cable (STAK3) - Automatic runtime setting for commissioning - Ideal io radio retrofit for venetian blinds - Approach and feedback of the vertical positioning of the venetian blind (including slat inclination) for flexible automation - The 'my' favorite position is preset and can be positioned at any height and approached directly at any time Note: The J4 io must be used for blind heights of 5 m and above! The WP (Working Position) version is used to correctly display Venetian blinds with a working position: The Venetian blind lowers with an opening angle that is locked at the factory. The slats can only be turned in the lower end position. Suitable for all Venetian blinds / external blinds with visible ladder cords for the slat inclination. Approved in combination with all Venetian blind drives with mechanical limit switches, series J4, J5, J7 and Orienta, as well as third-party products. Not compatible with electronic drives with the exception of the J4 WT. Operating voltage: 230 V - 50 Hz Operating temperature: -30 to 70 °C Protection class: IP 54 Radio frequency: 868-870 MHz Dimensions (W x H x D): 105 x 32 x 33 mm Total length with cable: 1.5 m Number of teachable io 1W transmitters + sensors: up to 9 Number of teachable io sensors: up to 3 Operating time: max. 4 Relay switching contact load capacity: 3 A / cos phi >, 0.6
