Somfy 1811684 Screen Slim Receiver io Plug radio receiver

In stock
SKU: 720163
€151.40
Into a basketIn the basketGo

Overview

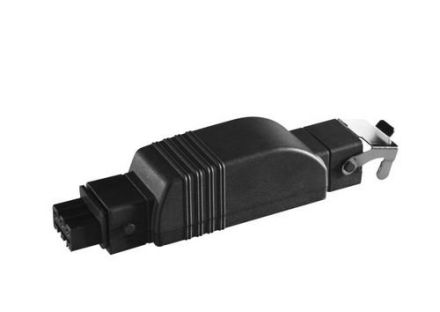

External io-compatible radio receiver for a window or conservatory awning that is equipped with a wired 230 V / 50 Hz drive. - Connection between drive cable with mounted plug (STAS3) and power cable with mounted coupling (STAK3) - Enables the simple, subsequent integration of existing, wired applications into the io world and the TaHoma smart home system Note: The end positions must be set directly in the drive before the radio receiver is put into operation. The Slim Receiver io must be installed protected from rain. Operating voltage: 230 V - 50 Hz Operating temperature: -20 to 70 °C Protection class (housing): IP 54 Radio frequency: 868-870 MHz Dimensions (W x H x D): 130 x 32 x 33 mm Operating time: max. 4 min Switching contact load capacity relay: max. 3 A / cos phi > 0.6

Property Value
Number of relays: 2
Mounting type: other
Radio frequency: 868 MHz
Modulation: VHF (FM)
Color: black
Material: plastic
Halogen-free: no
Surface: untreated
Mounting type: other
Material quality: thermoplastic
Surface finish: matt
Suitable for protection class (IP): IP54
Suitable for dimmers: no
Suitable for pulse switches: no
Suitable for roller shutter switches: no
Suitable for switches: no
Rolling code system: yes
In the housing: yes
In the tube base housing: no
As a module/circuit board: no
Touch operation: no
Switching operation: yes
With radio hand transmitter: no
With radio coding device: no
With radio button: no
Suitable for blind switches: no
Suitable for blind/roller shutter switches: no
Transparent: no
Protection class (NEMA): other

Characteristics

Suitable for dimmersNo
HABScreen Slim Receiver io Plug
ManufacturerSomfy
HAN1811684
GTIN3660849563493
Surface finishFrosted
Mounting typeOther
ColorBlack
Suitable for protection class (IP)IP54
Halogen freeNo
Mounting typeOther
SurfaceUntreated
Protection class (NEMA)Other
TransparentNo
MaterialPlastic
Material qualityThermoplastic
