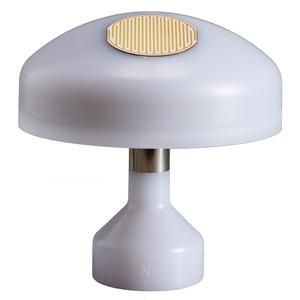

For recording weather data and integration into animeo systems (IB+, IP/io, KNX, Lon). The M8 weather station has 8 sensors. By recording the outside conditions in four different orientations, it contributes to the comfort of the building users, reducing energy consumption and the safety of the system. For roof and facade installation. - 4 lux sensors for glare protection and daylight management - Outdoor temperature sensor for energy optimization - Sensors for wind speed and rain to protect external sun protection/blinds - 4 pins (RS485 cable connection) Note: Must be used with a 24 V power supply (+ 10 % / 30 %). The position of the weather station can influence the measured values of the sensors. Scope of delivery: animeo Weather Station M8, fastening for strain relief Operating voltage: 24 V DC + 10 %/- 30 % Maximum current at 24 V: 230 mA Operating temperature: -30 to 70 °C Protection class in working position: IP 44 Protection class: III Dimensions of the housing (Ø x H): 103 x 105 mm Housing material: Polycarbonate
