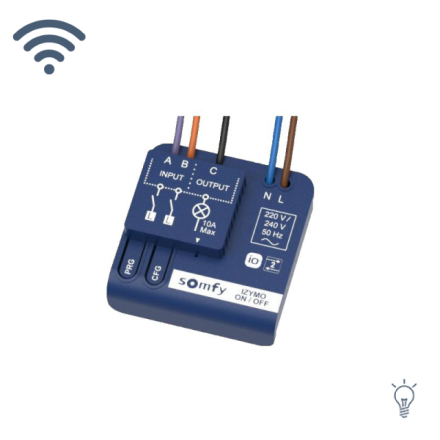

Flush-mounted radio receiver for switching lights or 230 V consumers up to max. 2,000 W on and off with an io radio transmitter or switch/button. - Small size for installation behind the existing switch or in a junction box - Compatible with single, changeover and cross circuits and as a replacement for a surge relay - Protection of the receiver in the event of incorrect wiring - Easy retrofitting of an existing installation - Switching light sources such as 230 V LEDs, low-voltage LEDs with 230 V transformer, 230 V halogen lamps, low-voltage halogen lamps with 230 V transformer, incandescent lamps and ohmic consumers on and off using the existing switches/buttons (potential-free control) and io radio transmitters - Integration of this product in scenarios, daily routines and if-then conditions from TaHoma - Query of the current status of the receiver via TaHoma and bidirectional controls - Optional timer for automatic switch-off (staircase automation): adjustable from 30 seconds to 30 minutes Note: Neutral conductor (N) and phase (L) are required Operating voltage: 230 V AC ~ 50 Hz, max. 10A Operating temperature: 0 °C to 55 °C Ambient conditions: dry living spaces Protection class: IP 20 Max. output power: - 2,000 W for ohmic load - 2,000 W for halogen lamps - 500 W for electronic or ferromagnetic transformer - 150 W for energy-saving lamps - 150 W for LED (230 V AC) Max. number of registrable io radio transmitters (1W): 10 Radio frequency: 868-870 MHz Dimensions (WxHxD): 43 x 43 x 18 mm
