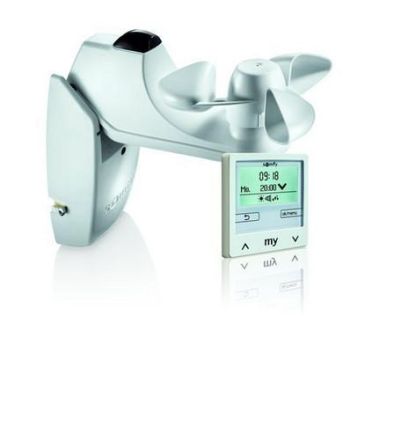

Enables automatic (time, wind and brightness dependent) as well as manual control of several wired drives. An additional Smoove Uno IB+ individual motor control unit is required for each drive. A control line (IB bus) connects the Soliris Smoove IB+ central control unit with the individual motor control units. Measurement of wind speed and sun intensity via combined wind and sun sensor. - Simple, menu-guided operation and programming using a plain text display - Controls up to three different groups - Combines all the functions and advantages of the Smoove Chronis Uno IB+ program timer - Easy setting of the wind and brightness threshold value on the control unit - Can be combined with a rain sensor (item no. 9 016 345) to protect the awning fabric and the awning mechanism - Automatic twilight via stored sun progression times (Cosmic) Scope of delivery: Motor control unit with time, wind and sun automation, including wind-sun sensor. Please order frame separately. Operating voltage: 220-240 V ~50/60 Hz Relay switching contact load capacity: 3A /cos phi >0.9 Operating temperature: 0 °C to 40 °C Ambient conditions: dry living spaces Protection type/protection class: IP20 / II Drive running time: max. 6 min. Dimensions (W x H x D): 50 x 50 x 22 mm
