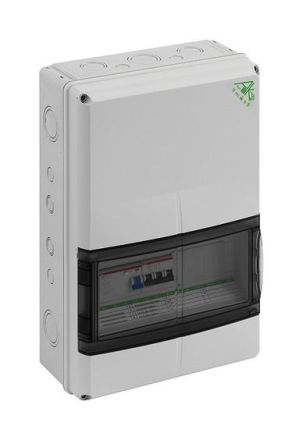

Spelsberg 73301101 AK 14+EMOBIL 11kW-A small distribution board

In stock

SKU: 713056

Price on request

€350.32

€0

Overview

E-mobility infrastructure distributor, 1-row with integrated ventilation elements to prevent condensation, type-tested according to EN 61439-3, wired ready for connection to incoming and outgoing terminals 10mm², for a wallbox 11kW with integrated 6mA DC monitoring, equipped with LS switch 20A, RCCB 40/4/30mA type A

Property	Value
Width:	315 mm
Height:	155 mm
Depth:	450 mm
Main switch rated current:	40 A
Protection class (IP):	IP65
Number of phases:	3
Protection:	Circuit breaker / combination residual current device/cable breaker.
Total number of groups:	1
Number of groups behind the residual current device:	1
Number of combinations of residual current device/circuit breaker:	1
Number of residual current devices 30 mA:	1
Stove connection group:	without
Stove connection group suitable as a high-voltage group:	no
With socket:	no
With bell transformer:	no
Surge protection:	no
Material of the housing:	plastic
Mounting option:	yes
With transparent cover:	yes
Mounting type:	Surface-mounted
Width in division units:	14
Lockable:	no
