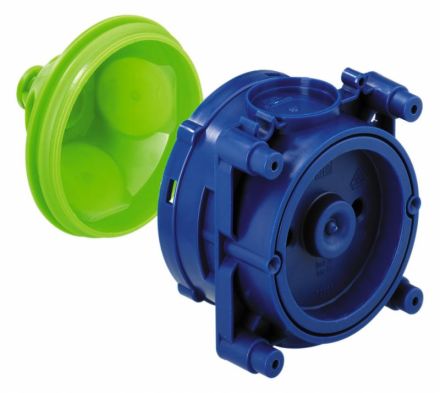

Spelsberg U 71 KUD dome box

In stock

SKU: 840556

Price on request

€1.58

€0

Overview

Dome box, can also be used as a ceiling box, 2 screw domes with screw spacing 60mm, can be combined at a standard spacing of 71mm, fully insulated cable transition, suitable for all types of formwork and counter formwork, with protection class IP30, rated insulation voltage: 400V AC, halogen-free, number of entries 45°: 4, 2-part, magnet or nail fastening, membrane for perforation, sealing range M16-M25, can be used with support beams
Dimensions: 71 x 71 x 91mm

Property	Value
With screws:	no
Depth:	91 mm
Length:	71 mm
Width:	71 mm
Material:	Plastic
Color:	other
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP30
Shape:	round
Diameter:	60 mm
Mounting type:	Concrete construction
Number of entries:	6
Design:	Single
Design:	Other
With nail tabs:	no
Windproof:	yes
Suitable for cable diameters:	1 to 25 mm
Entry from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	no
Cover fastening:	snaps on
Functional integrity:	without
For number of device inserts:	1
Surface:	untreated
Fastening of the devices:	screws or spreads
For pipe diameter:	25 mm
Tube locking:	yes
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	yes
Socket:	without
With shielding:	no
Housing feedthrough through knockout opening:	no
With rotating ring:	no
Special application:	without
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Blind cover
Transparent cover:	no
