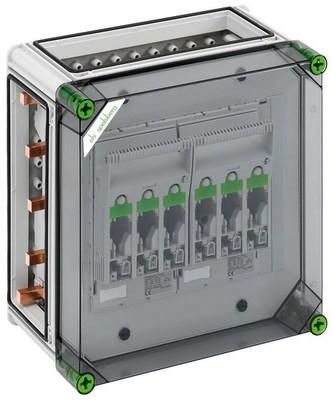

Spelsberg 04600586 GST 2025-630 NH bus-mounted switch housing

In stock

SKU: 761320

Price on request

€514.54

€0

Overview

NH busbar fuse switch disconnector housing, industrial quality, 2 x NH 00 busbar fuse switch disconnector, clamp connection 1.5-50mm², universal outlet, on 5-pole busbar, N terminals 4-35mm², PE terminals 4-35mm², 3 x housing connectors (GGV), on busbar system 630 A, with transparent coverDimensions: 320 x 320 x 179mm

Property	Value
Housing height:	320 mm
Rated operating current Ie:	630 A
Size of the fuse links:	NH00
Rated insulation voltage Ui:	690 V
Protection class (IP):	IP65
Number of poles:	5
With fuse monitoring:	no
Max. rated operating voltage Ue at AC:	690 V
Protection class (NEMA):	3R
