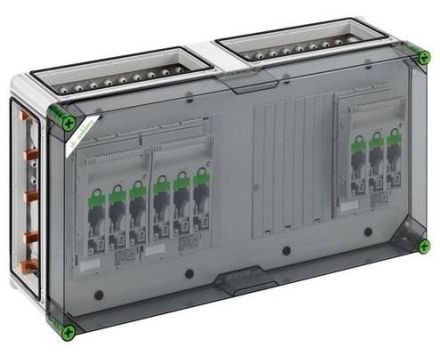

Spelsberg 04603586 GST 4035-630 NH bus-mounted switch housing

In stock
SKU: 761322
€799.19
Into a basketIn the basketGo

Overview

NH busbar fuse switch disconnector housing, industrial quality, 3 x NH 00 busbar fuse switch disconnector, clamp connection 1, 5-50mm², universal outlet, on 5-pole busbar, with 5 busbar terminals 16-70mm², N terminals 4-35mm², PE terminals 4-35mm², 4 x housing connectors (GGV), on busbar system 630 A, with transparent coverDimensions: 640 x 320 x 179mm

Property Value
Housing height: 320 mm
Rated operating current Ie: 630 A
Size of the fuse links: NH00
Rated insulation voltage Ui: 690 V
Protection class (IP): IP65
Number of poles: 5
With fuse monitoring: no
Max. rated operating voltage Ue at AC: 690 V
Protection class (NEMA): 3R

Characteristics

Rated operating current Ie630 A
HABGST 4035-630 NH bus-mounted switch housing
ManufacturerSpelsberg
HAN04603586
GTIN4013902873296
Rated insulation voltage Ui690V
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Number of poles5
IP protection)IP65
Protection class (NEMA)3R
Spelsberg 04603586 GST 4035-630 NH bus-mounted switch housing
