Spelsberg 04611701 GST 4115-630 NH bus-mounted switch housing

In stock

SKU: 761324

Price on request

€792.35

€0

Overview

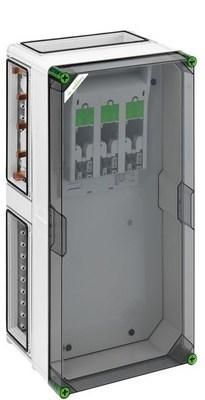

NH busbar-mounted fuse switch-disconnector housing, industrial quality, 1 x NH 1 busbar-mounted fuse switch-disconnector, screw connection M10, bottom outlet, on busbar 5-pole, N terminal 16-120mm², PE terminal 16-120mm², 4 x housing connectors (GGV), on busbar system 630 A, with transparent coverDimensions: 320 x 640 x 254mm

Property	Value
Housing height:	640 mm
Rated operating current Ie:	630 A
Size of the Fuse links:	NH1
Rated insulation voltage Ui:	690 V
Protection class (IP):	IP65
Number of poles:	5
With fuse monitoring:	no
Max. rated operating voltage Ue at AC:	690 V
Protection class (NEMA):	3R
