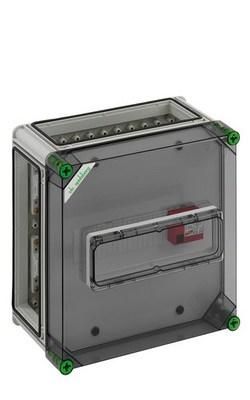

Spelsberg 1009501 GBZ 252-40 lightning protection housing busbar housing

Spelsberg 1009501 GBZ 252-40 lightning protection housing busbar housing

In stock

SKU: 761302

Price on request

€749.26

€0

Overview

Busbar housing, industrial quality, 5-pole, 40mm busbar spacing, with CU bars, L1...L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 terminals for CU conductors 4-35mm², with contact protection cover, with hinged window 12 TE, sealable, 1x cover strip 12TE lockable, 3 x housing connectors (GGV), with transparent cover, with lightning current and surge arrester type 1+2 according to EN 61643-11 for main power supply systems, network type TT/TNS, for use in buildings with external lightning protection (BSK III/IV), lightning current: (10/350) 12.5/50kA, highest continuous voltage: 255 V AC, max. permissible backup fuse: 160A gG, ready for connection mounted on busbar systemDimensions: 320 x 320 x 179mm

Property	Value
Maximum continuous voltage AC:	255 V
Lightning impulse current (10/350 µs):	50 kA
Test class:	Type 1 and 2
Number of poles:	5
Nominal voltage AC:	230 V
Size:	3 TE
Remote signaling:	no
Signaling on the device:	optical
Network type TN-CS:	no
Network type DC:	no
Network type TN:	no
Energetically coordinated protection effect for the end device:	yes
Mounting type:	pre-assembled in the housing
Network type TT:	yes
Integrated back-up fuse:	no
Follow current extinguishing capacity:	25 kA
Max. conductor cross-section, rigid (single/multi-wire):	50 mm²
Max. Conductor cross-section flexible (fine-stranded):	35 mm²
Network type other:	no
Protection level LN:	1.5 kV
Network type TN-C:	no
Network type IT:	no
Network type TN-S:	yes
Protection level L-PE:	1.5 kV
Protection class (IP):	IP65
