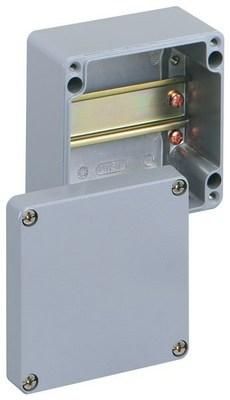

Spelsberg 16090901 ALR 1212-L terminal block housing

In stock
SKU: 761471
€61.79
Into a basketIn the basketGo

Overview

Terminal block housing, with protection class IP66, nominal cross-section 4mm², Ui=400V AC, powder-coated aluminum, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rail NS35Dimensions: 122 x 120 x 81mm

Property Value
Protection class (IP): IP66
Length: 120 mm
Width: 122 mm
Depth: 81 mm
Mounting type: Surface-mounted
Color: gray
Material: Aluminium
With cover: yes
With transparent cover: no
Sealable: yes
Halogen-free: yes
Functional integrity: without
For Ex zone gas: without
Type of introduction: other
Surface: anodized/anodized
Mounting option: no
Cover fastening: screwed
Explosion-tested version: no
Operating temperature: -35 to 75 °C
For Ex zone dust: without
Material thickness Housing: 4 mm
Impact resistance: IK09

Characteristics

Explosion-tested versionNo
HABALR 1212-L terminal block housing
ManufacturerSpelsberg
HAN16090901
GTIN4013902350742
Cultivation optionNo
Width122 mm
Operating temperature-35 to 75 °C
ColorGray
Functional preservationWithout
Halogen freeYes
Length120 mm
Housing material thickness4 mm
With lidYes
Mounting typeSurface-mounted
SurfaceAnodized
Impact resistanceIK09
IP protection)IP66
Depth81 mm
MaterialAluminum
