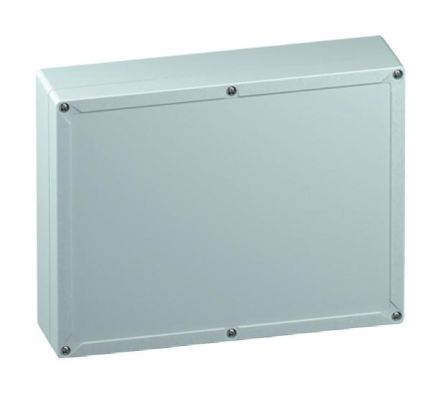

Spelsberg 20041301 TG PC 3023-9-o empty housing

In stock
SKU: 761605
€57.86
Into a basketIn the basketGo

Overview

Empty housing, with protection class IP66/IP67, polycarbonate, certified according to DLG (ammonia resistance), UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), Ui=690V AC, Ui=1000V DC, internal fastening points, for installations in industrial environments and protected outdoor areas, with quick-release fastener, box: polycarbonate, grey, lid: polycarbonate, grey, smooth side wallsDimensions: 302 x 232 x 90mmIncluded accessories: lid loss protection, 4 fastening screws for accessories

Property Value
Suitable for outdoor installation: yes
With rear door: no
Surface finish: untreated
Height: 232 mm
Width: 302 mm
Depth: 90 mm
Color: grey
Protection class (IP): IP66
RAL number: 7035
With mounting plate: no
Material: Plastic
EMC version: no
With viewing door: no
Depth-adjustable mounting plate: no
Suitable for metric mounting: no
With ventilation door: no
Mast mounting: yes
Impact resistance: IK08
Sloped roof: no
Wall installation: no
Material quality: other
Protection class (NEMA): 12

Characteristics

HABTG PC 3023-9-o empty housing
ManufacturerSpelsberg
HAN20041301
GTIN4013902996490
Surface finishUntreated
Width302 mm
EMC versionNo
ColorGray
Suitable for outdoor installationYes
Height232 mm
With mounting plateNo
RAL number7035
Impact resistanceIK08
IP protection)IP66
Protection class (NEMA)12
Depth90 mm
MaterialPlastic
Material qualityOther
