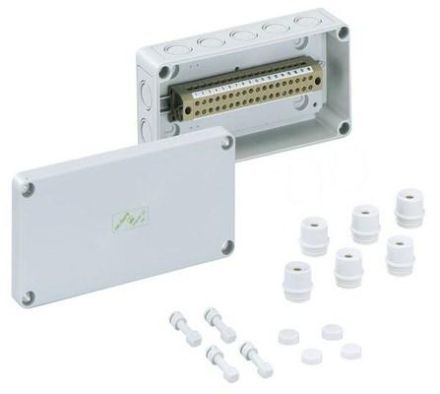

Spelsberg 63440401 RKKi 4/22-22x4 terminal block housing

In stock

SKU: 761336

Price on request

€54.17

€0

Overview

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, equipped with 22-pin block terminal 4mm² (type Contaclip BKA 4)Dimensions: 180 x 94 x 57mmIncluded accessories: 8 mounting sockets IP54 M20 sealing range 8-13.5mm

Property	Value
Protection class (IP):	IP66
Length:	94 mm
Width:	180 mm
Depth:	57 mm
Mounting type:	Surface-mounted
Colour:	grey
Material:	Plastic
With lid:	yes
With transparent lid:	no
Sealable:	yes
Halogen-free:	yes
Max. Conductor cross-section:	4 mm²
Functional integrity:	without
For Ex zone gas:	without
Type of introduction:	other
Rated insulation voltage Ui:	400 V
Surface:	untreated
Number of connection terminals:	22
Mounting option:	yes
Number of entries:	14
Cover fastening:	screwed
Explosion-tested version:	no
Operating temperature:	-25 to 40 °C
For Ex zone dust:	without
Material thickness of housing:	3 mm
Impact resistance:	IK08
