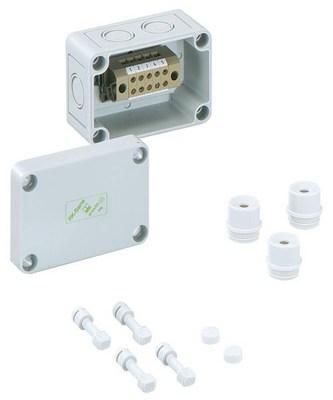

Spelsberg 63540401 RKKi 4/05-5x4 terminal block housing

In stock
SKU: 761337
€19.29
Into a basketIn the basketGo

Overview

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, equipped with 5-pin block terminal 4mm² (type Contaclip BKA 4)Dimensions: 94 x 65 x 57mmIncluded accessories: 3 mounting sockets IP54 M20 sealing range 8-13.5mm

Property Value
Protection class (IP): IP66
Length: 65 mm
Width: 94 mm
Depth: 57 mm
Mounting type: Surface-mounted
Colour: grey
Material: Plastic
With lid: yes
With transparent lid: no
Sealable: yes
Halogen-free: yes
Max. Conductor cross-section: 4 mm²
Functional integrity: without
For Ex zone gas: without
Type of introduction: other
Rated insulation voltage Ui: 400 V
Surface: untreated
Number of connection terminals: 5
Mounting option: yes
Number of the entries: 6
Cover fastening: screwed
Explosion-tested version: no
Operating temperature: -25 to 40 °C
For Ex zone dust: without
Material thickness of housing: 3 mm
Impact resistance: IK08

Characteristics

Explosion-tested versionNo
HABRKKi 4/05-5x4 terminal block housing
ManufacturerSpelsberg
HAN63540401
GTIN4013902573233
Cultivation optionYes
Rated insulation voltage Ui400V
Width94 mm
Operating temperature-25 to 40 °C
ColorGray
Functional preservationWithout
Halogen freeYes
Length65 mm
Housing material thickness3 mm
With lidYes
Mounting typeSurface-mounted
SurfaceUntreated
Impact resistanceIK08
IP protection)IP66
Depth57 mm
MaterialPlastic
