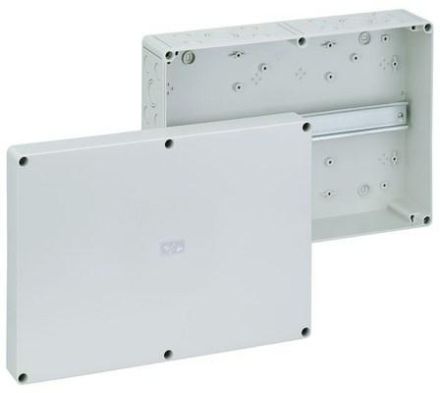

Spelsberg 63695001 RKi 4/50-L empty housing terminal block housing

In stock
SKU: 761632
€110.45
Into a basketIn the basketGo

Overview

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rail NS35Dimensions: 360 x 254 x 111mmIncluded accessories: 18 mounting nozzles IP54 M20 sealing range 8-13.5mm, 4 mounting nozzles IP54 M25 sealing range 9-18.5mm, 2 mounting nozzles IP54 M32 sealing range 13-23mm, 1 mounting nozzle IP54 M40 sealing range 17-30mm

Property Value
Protection class (IP): IP66
Length: 254 mm
Width: 360 mm
Depth: 111 mm
Mounting type: Surface-mounted
Color: gray
Material: Plastic
With lid: yes
With transparent lid: no
Sealable: yes
Halogen-free: yes
Functional integrity: without
For Ex zone gas: without
Type of entry: other
Rated insulation voltage Ui: 400 V
Surface: untreated
Mounting option: yes
Number of entries: 42
Cover fastening: screwed
Explosion-tested version: no
Operating temperature: -25 to 40 °C
For Ex zone dust: without
Material thickness of housing: 3 mm
Impact resistance: IK08

Characteristics

Explosion-tested versionNo
HABRKi 4/50-L empty housing
ManufacturerSpelsberg
HAN63695001
GTIN4013902573448
Cultivation optionYes
Rated insulation voltage Ui400V
Width360 mm
Operating temperature-25 to 40 °C
ColorGray
Functional preservationWithout
Halogen freeYes
Length254 mm
Housing material thickness3 mm
With lidYes
Mounting typeSurface-mounted
SurfaceUntreated
Impact resistanceIK08
IP protection)IP66
Depth111 mm
MaterialPlastic
Spelsberg 63695001 RKi 4/50-L empty housing terminal block housing
Spelsberg 63695001 RKi 4/50-L empty housing terminal block housing
€110.45
Into a basketIn the basketGo
