Spelsberg 74190301 AKi-R 4/102-L empty housing terminal block housing

In stock

SKU: 761653

Price on request

€165.47

€0

Overview

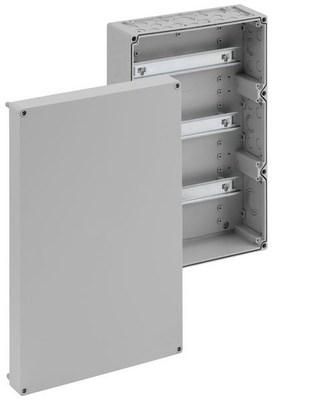

Terminal housing, with protection class IP65, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rails NS35Dimensions: 300 x 450 x 132mmIncluded accessories: 10 double membrane nozzles IP66 M20 sealing range 7-12mm, 2 double membrane nozzles IP66 M25 sealing range 9-16mm, 2 double membrane nozzles M32 sealing range 14-21mm, 1 double membrane nozzle IP66 M40 sealing range 19-28mm

Property	Value
Protection class (IP):	IP65
Length:	450 mm
Width:	300 mm
Depth:	132 mm
Mounting type:	Surface-mounted
Color:	gray
Material:	Plastic
With lid:	yes
With transparent lid:	no
Sealable:	yes
Halogen-free:	yes
Functional integrity:	without
For Ex zone gas:	without
Type of introduction:	other
Surface:	untreated
Mounting option:	yes
Cover fastening:	screwed
Explosion-tested version:	no
Operating temperature:	-35 to 80 °C
For Ex zone dust:	without
Material thickness of housing:	3.5 mm
Impact resistance:	IK08
