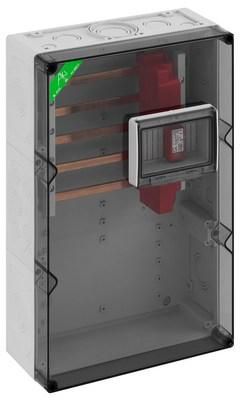

Spelsberg 76735201 AKi-SBZ 352-40 lightning protection housing surge protection housing

Spelsberg 76735201 AKi-SBZ 352-40 lightning protection housing surge protection housing

In stock

SKU: 761454

Price on request

€713.07

€0

Overview

Surge protection housing, industrial quality, 5-pole, 40mm busbar spacing, with CU rails, L1...L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 busbar terminals for CU conductors 4-35mm², with hinged window 6 TE, with transparent cover, sealable, with lightning current and surge arrester type 1+2 according to EN 61643-11 for main power supply systems, network type TT/TNS, for use in buildings without external lightning protection, lightning current: (10/350) 7.5/30kA, highest continuous voltage: 255 V AC, max. permissible backup fuse: 160A gG, mounted ready for connection on busbar systemDimensions: 300 x 450 x 150mm

Property	Value
Highest continuous voltage AC:	255 V
Lightning impulse current (10/350 µs):	30 kA
Test class:	Type 1 and 2
Number of poles:	5
Rated voltage AC:	230 V
Size:	3 TE
Remote signaling:	no
Signaling on the device:	optical
Network type TN-CS:	no
Network type DC:	no
Network type TN:	no
Energetically coordinated protection effect for the end device:	yes
Mounting type:	pre-assembled in the housing
Network type TT:	yes
Integrated backup fuse:	no
Follow current extinguishing capacity:	25 kA
Max. conductor cross-section, rigid (single/multi-wire):	50 mm²
Max. Conductor cross-section flexible (fine-stranded):	35 mm²
Network type other:	no
Protection level LN:	1.5 kV
Network type TN-C:	no
Network type IT:	no
Network type TN-S:	yes
Protection level L-PE:	2.2 kV
Protection class (IP):	IP65
