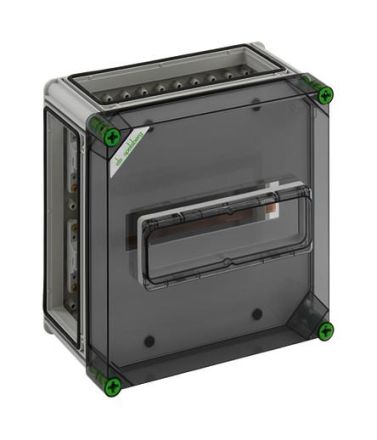

Spelsberg GSi 252-40 busbar housing, 04025201

In stock
SKU: 482653
€167.87
Into a basketIn the basketGo

Overview

Busbar housing - industrial quality -, 5-pole, 40 mm busbar spacing, with CU rails, L1...L3: 12 x 5 mm, PE/N: 12 x 5 mm, with 10 terminals for CU conductors 4-35mm, with touch protection cover, with hinged window 12 TE, sealable, 1x cover strip 12TE lockable, 3 x housing connectors (GGV), IP65, impact resistance IK08, protection class II, rated insulation voltage Ui 400V, halogen-free, IQ - industrial quality, 320 x 320 x 179, with transparent cover, for individual assembly

Property Value
Height: 320 mm
Width: 320 mm
Depth: 179 mm
Number of poles: 5
Rated current of rail system: 160 A
Short circuit strength (Icw): 25 kA
Protection class (IP): IP65
Equipped with busbar: yes
Mounting option: yes
With transparent cover: yes
Material of the housing: Plastic
Mounting type: Surface-mounted
Protection class (NEMA): 3R

Characteristics

HABGSi252-40
ManufacturerSpelsberg
HAN04025201
GTIN4013902598731
Cultivation optionYes
Width320 mm
Height320 mm
Short circuit strength (Icw)25kA
Mounting typeSurface-mounted
Number of poles5
IP protection)IP65
Protection class (NEMA)3R
Depth179 mm
Housing materialPlastic
