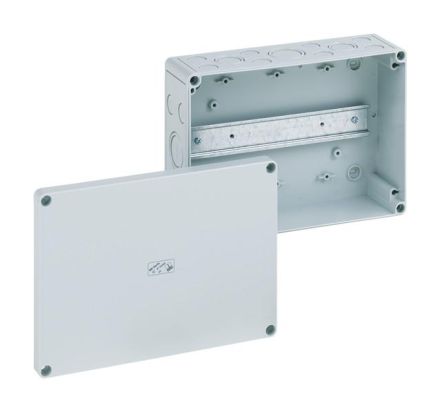

Spelsberg RKi 4/25-L empty housing, 63591601

In stock

SKU: 482631

Price on request

€54.38

€0

Overview

Terminal block housing, with protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, polycarbonate, internal fastening points, for installations in industrial environments and protected outdoor areas, without terminals, with mounting rail NS35Dimensions: 254 x 180 x 90mmIncluded accessories: 8 mounting nozzles IP54 M20 sealing range 8-13.5mm, 2 mounting nozzles IP54 M25 sealing range 9-18.5mm, 1 mounting nozzle IP54 M32 sealing range 13-23mm

Property	Value
Protection class (IP):	IP66
Length:	180 mm
Width:	254 mm
Depth:	90 mm
Mounting type:	Surface-mounted
Color:	gray
Material:	Plastic
With lid:	yes
With transparent lid:	no
Sealable:	yes
Halogen-free:	yes
Functional integrity:	without
For Ex zone gas:	without
Type of entry:	other
Rated insulation voltage Ui:	400 V
Surface:	untreated
Mounting option:	yes
Number of entries:	32
Cover fastening:	screwed
Explosion-tested version:	no
Operating temperature:	-25 to 40 °C
For Ex zone dust:	without
Material thickness of housing:	3 mm
Impact resistance:	IK08
