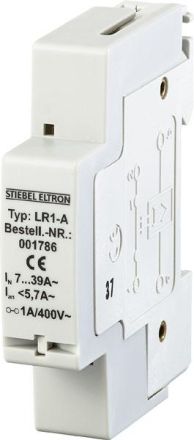

Stiebel Eltron 001786 load shedding relay LR-1-A

In stock

SKU: 312754

Price on request

€56.80

€0

Overview

Load shedding relay for instantaneous water heaters up to 27 kW, version 5 - 39 A, response current range <, 7.6 A, switching capacity 1 A / 250 V relay contact 1 opener

Property	Value
Rated voltage:	39 V
Rated current:	400 A
Response current:	5.7 A
Max. Continuous current:	43 A
Rated current (control contacts):	1 A
Max. switching voltage (control contacts):	400 V
Max. switching capacity (control contacts):	250 VA
Electrical service life (control contacts):	100,000 switching cycles
Mechanical service life (control contacts):	1,000,000 switching cycles
Max. Electrical switching frequency:	1800 c/h
Voltage type:	AC
Mounting type:	DIN rail
Width in pitch units:	1
Installation depth:	67 mm
Protection class (IP):	IP40
Number of contacts as break contacts:	1
