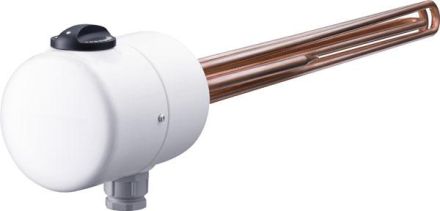

Connection type: screw connection, connected load: 5.7kW, design: universal flange, operating pressure: 10 bar, immersion depth: 500 mm, nominal voltage 1: 230 V, nominal voltage 2: 400 V, safety temperature limiter: yes, temperature setting: 80 ° C, heating element material: copper, screw-in heating element for use in heating systems in accordance with DIN 4751 and drinking water heating systems in accordance with DIN 4753 (note immersion depth). Continuously variable temperature setting from approx. 10 degrees C to 80 degrees C (depending on the installation position), temperature limitation to 45/60/80 degrees C possible. Built-in temperature controller with safety temperature limiter (combination) with all-pole shutdown. Heating element/protective tube materials: Cu. Screw-in connection: Cu Zn (brass) thread G 1 1/2 with PTFE seal. Permissible operating pressure 1.0 MPa. Quality and safety marks: VDE/GS mark, radio protection mark, IP44 (splash-proof).
